當前位置： 首頁 > 產品總匯 > 粉塵防爆電器類 > BPY-F系列粉塵防爆熒光燈（DIP）

BPY-F系列粉塵防爆熒光燈（DIP）

詳細信息
BPY-F系列粉塵防爆熒光燈（DIP）
BPY-F type dust explosion-proof fluorescent lamp (DIP)
型號含義 Modelimplication
適用范圍 Applications
1.20區、21區、22區危險場所；
2.可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。		 1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight, war ind-ustry and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.采用防爆結構，快速更換燈管，燈具可根據要求配成可調節方式，在更換燈管時，可以將燈具一端拉出；
3.可根據用戶要求配裝應急裝置，當外界斷電時，燈具自動切換到應急照明狀態；
4.鋼管或電纜布線。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Using the explosion-proof structure, rapid replacement of the lamp , lighting can be adjusted on request dubbed way in replacing the lamp, the lamp can be put down at one end;
3.Can be customized emergency device, when the external power, the lights automatically switch to the state of emergency lighting;
4.Pipe or cable wiring.
主要技術參數 Main technical parameters
額定功率
Rated Power (W)		 額定電壓
Rated Voltage (V)		 防爆標志
Ex-mark		 電纜外徑
Cable outer dia.(mm)		 進線口螺紋
Inlet thread (G")		 防護等級
Degree of protection		 防腐等級
Erosion-proof-class
熒光燈光源
fluorescent
1×20
1×30
1×40
2×20
2×30
2×40		 220 DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標 φ8~φ10 1/2" IP54
IP65*		 WF1

電壓(V)Voltage 應急燈起動時間(S)
Starting time of emergency lamp		 充電時間
Charging time		 應急燈照明時間
Lighting time of emergency lamp
正常Normal 應急 Emergency
AC220 DC6 0.3 24 90

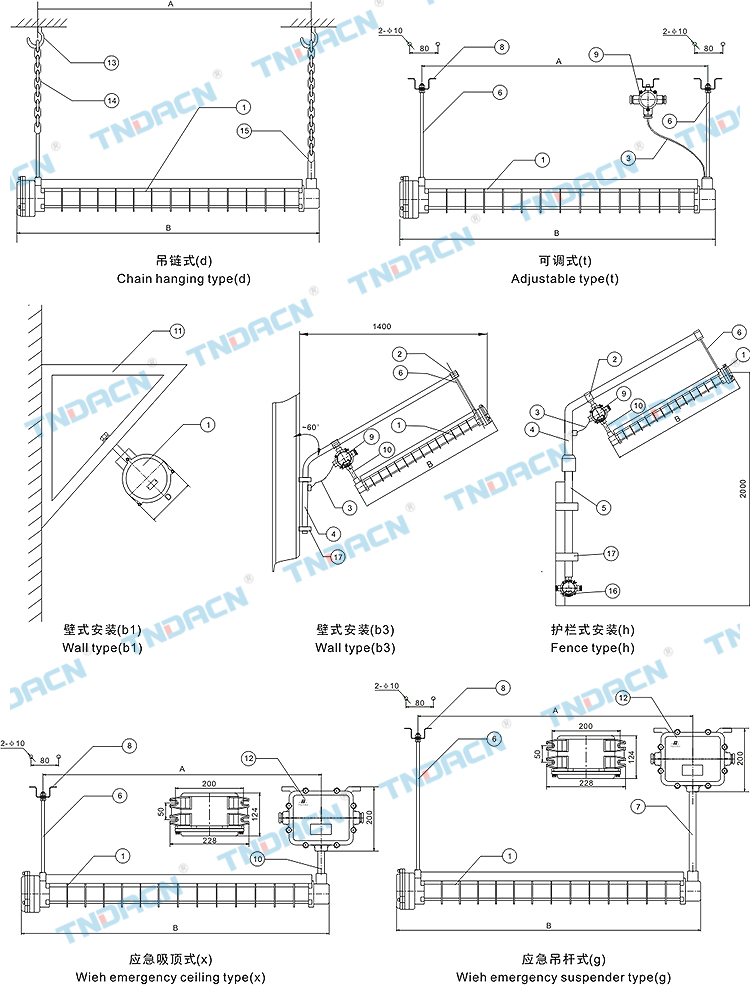

外形及安裝尺寸 Outline & installation dimensions
安裝配件表 Installation accessories and spare parts
序號
No.		 名稱 Description 備注 Remark 序號
No.		 名稱 Description 備注 Remark
1
 		 燈具 Lamp
 		   10
 		 管接頭 Fittings

2 安裝管夾 Pipe clamp   11 壁式安裝架 Wall mounting rack
3 撓性連接管 Flexible connecting pipe 用戶自備Self-prepare 12 防爆應急裝置 Energency device
4 平臺彎桿 Platform bend-rod type   13 吊鉤 Hook
5 平臺管子 Platform tube   14 鏈條 Chain
6 連接桿Bindiny pole   15 吊環螺釘 Eye bolt
7 吊桿 Suspender   16 平臺燈接線盒 Platform Light Junction Box
8 吸頂腳 Ceiling rack   17 U型管夾U-tube clip 用戶自備Self-prepare
9 防爆接線盒 Junction box   18 底板 Bottom board
燈具規格尺寸表 Size table of lamp
型號 type A B C
BPY-D-20
BPY-D-30
BPY-D-40
BPY-S-20
BPY-S-30
BPY-S-40
BPY-D-40(J)
BPY-S-40(J)		 625
930
1225
630
930
1235
1225
1235		 715
1010
1310
715
1020
1325
1310
1325		 260
260
260
280
280
280
360
380
